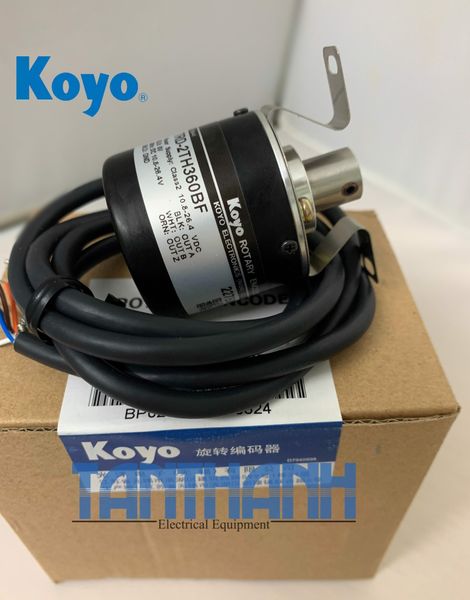

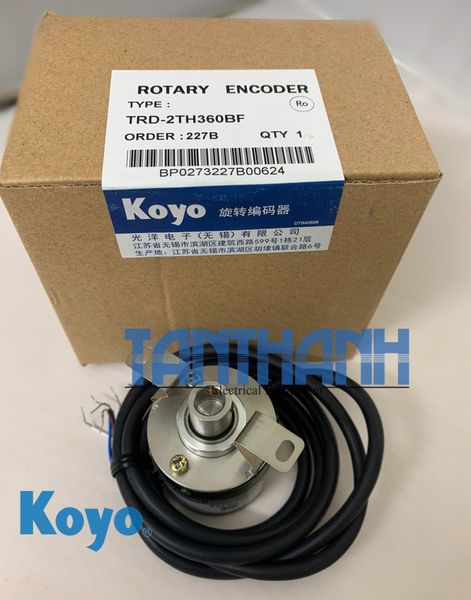

Incremental Rotary Encoder TRD-2TH360BF

0₫

Mô tả

TRD-2TH360BF

Xuất xứ: Koyo

TRD-2TH360BF
Encoder Type	Incremental
Duty Type	Light
Pulse Per Revolution	360
Input Voltage (VDC)	12-24V
Output Form	Push-Pull (Totem Pole)
Signal Format	Quadrature (2-Phase Output) + Home Position
Output From	Side
Shaft	Hollow
Shaft Diameter (mm)	8
Diameter (mm)	38
Depth (mm)	30
Mounting Pitch (mm)	46
Cable Length (meter)	1
Connector Type	Tinned Ends
Protection Level	IP50 (Dust Proof)
Short Circuit Protection	Yes
Reverse Origin Action	Negative Logic (Active Low)
Total Shaft Length (mm)	9
Usable Shaft Length (mm)	9

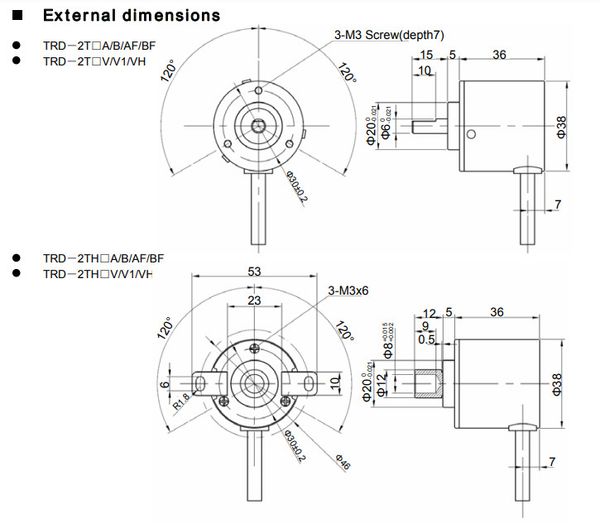

• Drawing and dimension:
