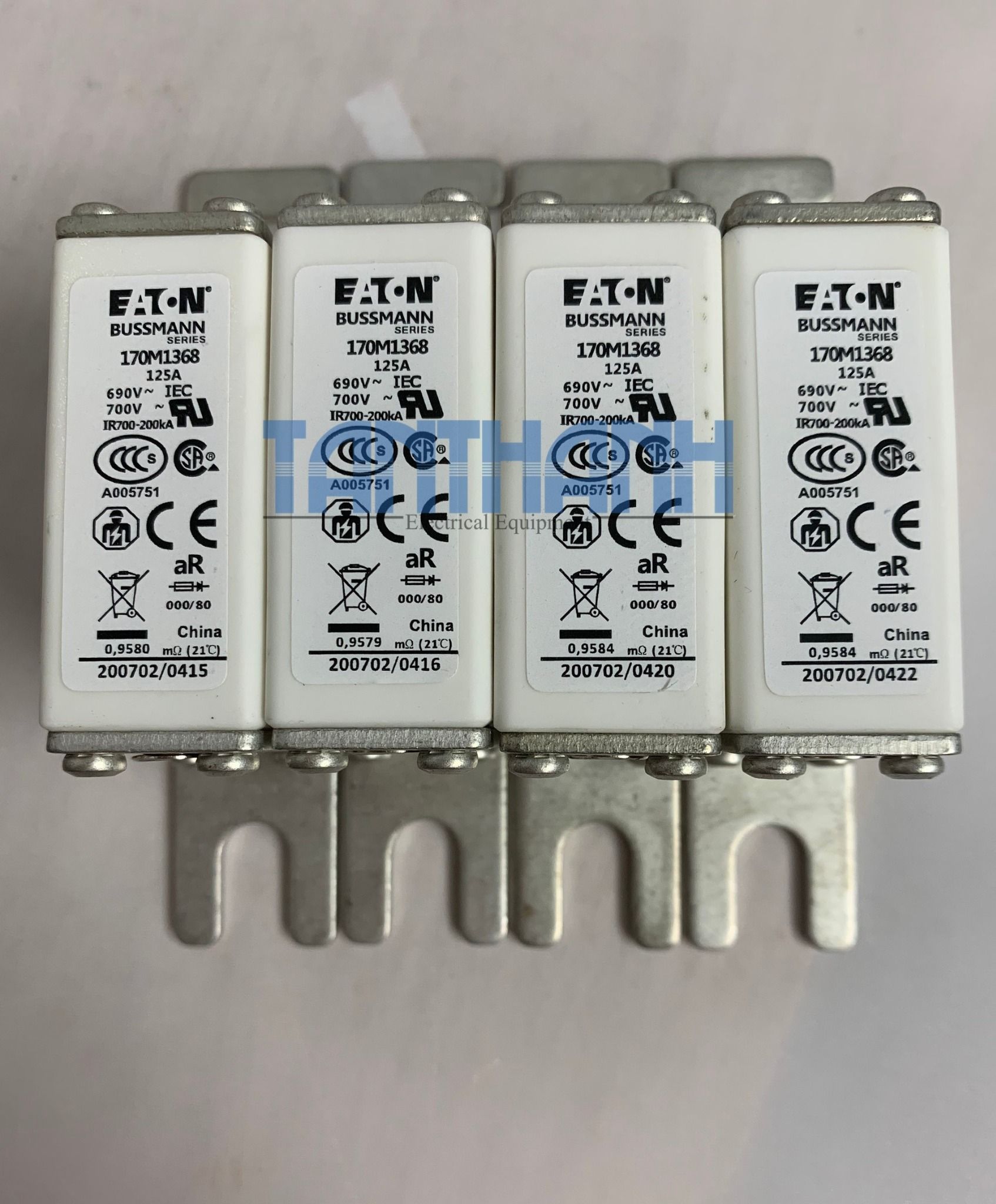

170M1368 High Speed Fuse Eaton Bussmann

0₫

Mô tả

Eaton Bussmann 170M1368

Manufacturer: Bussmann - China

Specifications:

PRODUCT NAME	Eaton Bussmann series high speed square body fuse
CATALOG NUMBER	170M1368
UPC	51712216692
EAN	5027590440851
PRODUCT LENGTH/DEPTH	105 mm
PRODUCT HEIGHT	46 mm
PRODUCT WIDTH	300mm

PRODUCT SPECIFICATIONS
FUSE INDICATOR	Top fuse status indicator
INTERRUPT RATING	200 kAIC
CLEARING (I2T)	8500 at 660 V
INSULATED METAL GRIPPING LUGS (IMGL)	No
CONNECTION	Blade end x blade end
UTILIZATION CATEGORY	aR (accompanied semiconductor protection)
WATT LOSSES	28 W
FUSE TYPE	DIN 43653
FUSE SHAPE	Square body, slotted offset bolted tags
PRE ARC (I2T)	1200
VOLTAGE RATING	690 V (IEC), 700 V (UL)
APPLICATION	Semiconductor, DC Common bus, DC drives, power converters/rectifiers
VOLTAGE TYPE	AC

• Drawing and dimensions:

• Other models:

170M1308 170M1309 170M1310 170M1311 170M1312 170M1313 170M1314 170M1315 170M1316 170M1317 170M1318 170M1319 170M1320 170M1321 170M1322 170M1358 170M1359 170M1360 170M1361 170M1362 170M1363 170M1364 170M1365 170M1366 170M1367 170M1368 170M1369 170M1370 170M1371 170M1372 170M1408 170M1409 170M1410 170M1411 170M1412 170M1413 170M1414 170M1415 170M1416 170M1417 170M1418 170M1419 170M1420 170M1421 170M1422 170M2608 170M2609 170M2610 170M2611 170M2612 170M2613 170M2614 170M2615 170M2616 170M2617 170M2618 170M2619 170M2620 170M2621 170M2658 170M2659 170M2660 170M2661 170M2662 170M2663 170M2664 170M2665 170M2666 170M2667 170M2668 170M2669 170M2670 170M2671 170M2708 170M2709 170M2710 170M2711 170M2712 170M2713 170M2716 170M2717 170M2719 170M2721 170M2758 170M2759 170M2760 170M2761 170M2762 170M2763 170M2764 170M2765 170M2766 170M2767 170M2768 170M2769 170M2770 170M2771
