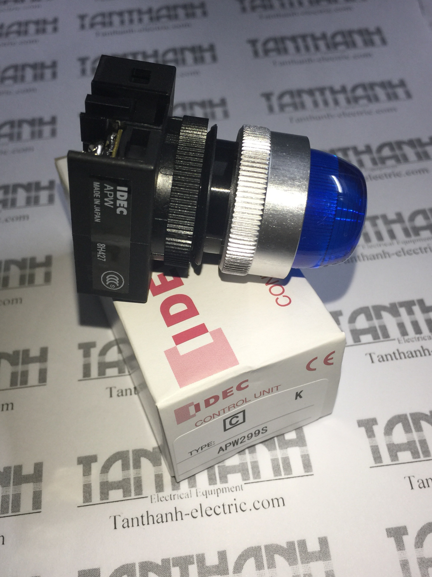

Đèn báo pha APW299

0₫

Mã hàng :

Mô tả

Product data sheet TW SERIES

TW Series Pilot Lights

Main

Pilot Lights (with Removable Lamp Terminal)

Mounting diameter : 22mm

Shape of signaling unit head: Round, Dome

Operating Voltage: 220VAC, 110VAC, 24VDC…

Lamp: Built-in LED lamp: LSED Series

Lens Color Code: R (red), G (Green),W (white), Y (yellow)

From panel front: IP65 (IEC 60529), Terminal: IP20 (IEC 60529)

Kích thước

Ordering Information

➁ Lens/LED Color Code

- A: amber
- G: green
- PW: pure white
- R: red
- S: blue
- W: white
- Y: yellow

LED Lamp Ratings

Type No. Rated Voltage Rated Current

Thông số kỹ thuật :

Điện áp : 220VAC, 220VDC, 110VDC,110VAC, 24VDC,6VDC, 12VDC, 230/240VAC

Dòng điện tiêu thụ nhỏ hơn 18mA

Tuổi thọ : Trên 100.000 giờ sáng liên tục
