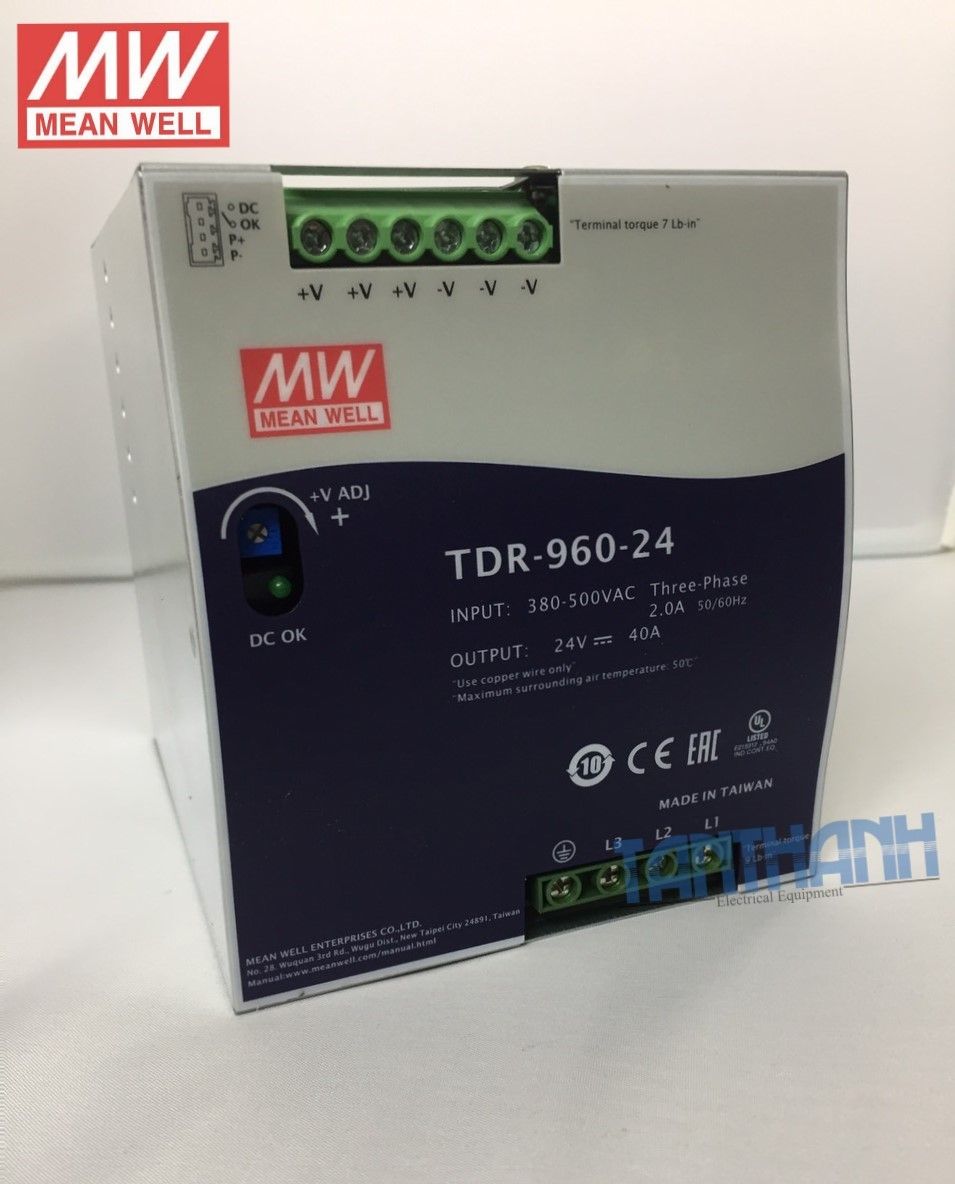

TDR-960-24

0₫

Mô tả

TDR-960-24

Xuất xứ: Đài Loan

Brand	Meanwell
Series	TDR-240
Type of power supply	switched-mode
Output Voltage	24 V
Output rated current	0-40 A
Power Rating	960 W
Input Voltage	340 - 550 V (three phrase)
Operating temperature	-30...70°C
Freq.	47-63 Hz
Body dimensions	110 x 125.2 x 150 mm (W x H x D)
Weight	2.47 kg

• Specification:

Ripple & noise (max.)	180mVp-p
Voltage adj. range	24 ~ 28V
Voltage tolerance	± 1.0%
Line regulation	± 0.5%
Load regulation	± 1.0%
Setup, rise time	1000ms, 100ms/400VAC 800ms, 100ms/500VAC at full load
Hold up time (typ.)	2ms / 400VAC 14ms / 500VAC at full load
Power factor	PF≧0.88/400VAC PF≧0.86/500VAC at full load
Efficiency	94 %
AC current (typ.)	2A/400VAC 1.4A/500VAC
Inrush current (typ.)	Cold Start 60A
Leakage current	<3.5mA / 530VAC
Isolation Voltage	500 V
Overload protection	105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover
Over voltage protection	29 ~ 33V Protection type : Shut down o/p voltage, re-power on to recover
Over temperature	Shut down o/p voltage, recovers automatically after temperature goes down
Working temp.	-30 ~ +70°C (Refer to "Derating Curve")
Working humidity	20 ~ 95% RH non-condensing
Storage temp., humidity	-40 ~ +85°C, 10 ~ 95% RH non-condensing
Temp. coefficient	±0.03%/°C (0 ~ 50°C)
Kind of case	214 A
Vibration	Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Safety standards	UL508 approved, IEC62368-1 CB approved by SIQ, EAC TP TC 004
Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C/ 70% RH
EMC emission	Compliance to EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2,-3, EAC TP TC 020
EMC immunity	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, EAC TP TC 020
MTBF	59.4K hrs min. MIL-HDBK-217F (25°C)T
Protection features	Short circuit / Overload / Over voltage / Over temperature
Mounting Type	DIN Rail
Approval Agency	UL/CB/CE/EN/EAC
