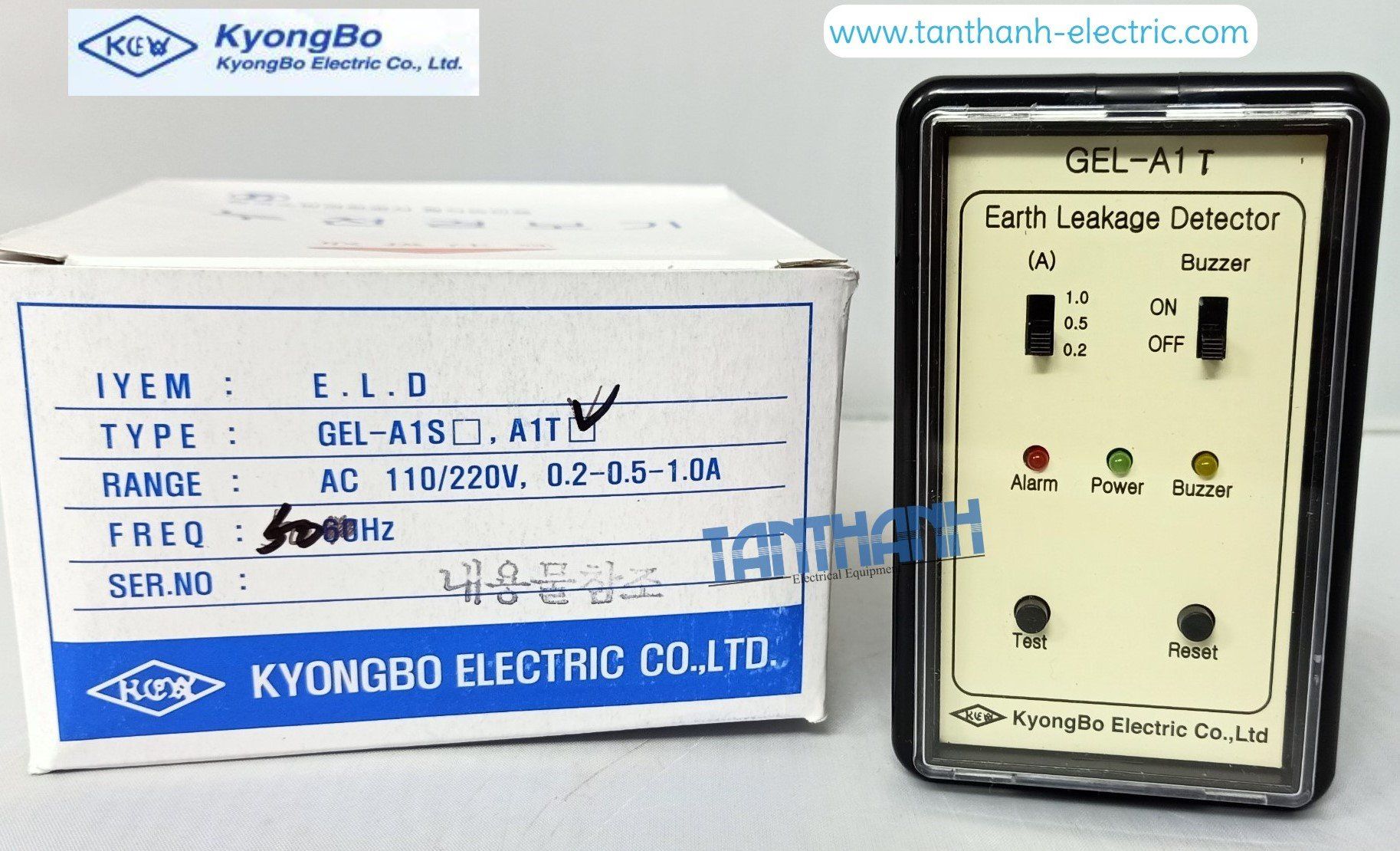

Kyongbo GEL-A1T

Kyongbo GEL-A1T

0₫

Mô tả

GEL-A1T

Xuất xứ: Korea

Brand	Kyongbo
Model	GEL-A1T
Rated power voltage	AC 110/220 V
Nominal voltage current	0.2A, 0.5A, 1.0A (3-stage adjustment)
Freq.	60Hz (standard), 50Hz (option)
Weight	≒0.5kg

• Specification:

Number of border converters	1 circuit
Ambient temperature	-10℃~+50℃
Return method	Manual return
Rescue	Flush Mounted Type
Boundary line voltage	AC 600 V
Power supply voltage	80% ~ 120% of rated power voltage
Display device	• Power: Green LED • Alarm: Red LED • Buzzer (off): Yellow LED
Sound device	Buzzer: 70db/m or more
Operating current	Operation: 53% ~ 75% of nominal operating current Non-operation: 52% of nominal operating current value
Contact capacity	10A at AC 120V, 10A at DC 24V
Consumption burden	Non-operation: 2.5 VA Operation: 3 VA
Insulation Resistance	Between charging part and enclosure: DC 500V 5MΩ or more
Power frequency withstand voltage	Between charging part and enclosure: AC 2200V / 1 minute / 60Hz
Impulse withstand voltage	1.2×50㎲, 6kV voltage between the charging part and the enclosure is fixed. 1 time each with negative polarity
Vibration	Frequency: 10~150 Hz, acceleration amplitude: 0.981㎨, number of axes: 3, Sweep speed: 1 octave/min, number of sweep cycles: 1 per axis
Impact	No problem by applying 50G impact 5 times
Fuse capacity	0.25A × 1 EA
Enclosure	ABS resin / Black N1.5, Flammability

• Drawing and dimesion

• Other models:

GEL-A1S
GEL-A1T
