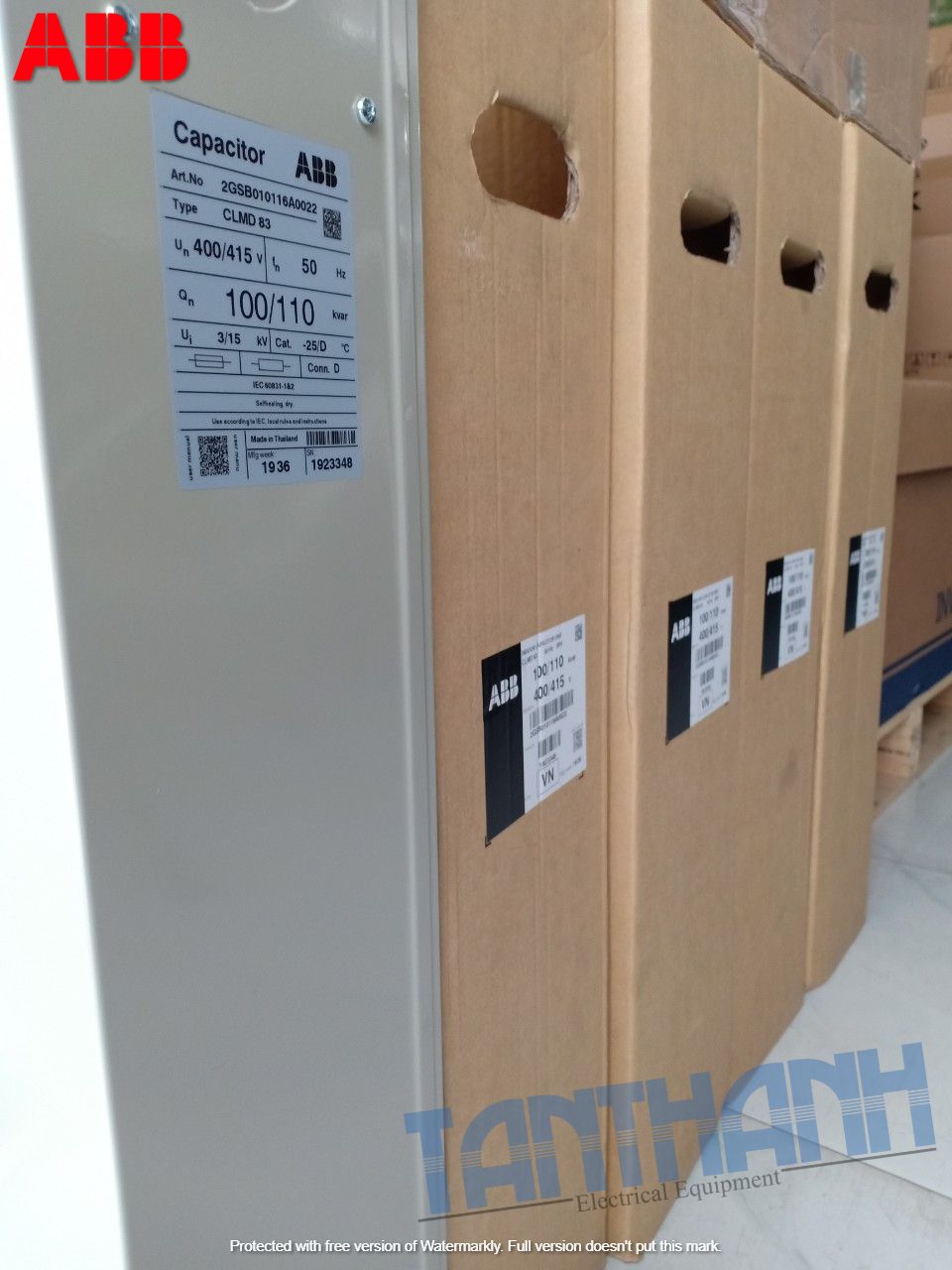

Capacitor ABB CLMD 83

Capacitor ABB CLMD 83

0₫

Mô tả

Capacitor ABB CLMD 83

Xuất xứ: Thái Lan

Manufacturer	ABB
Model	CLMD83
Art No	2GSB010116A0022
Voltage range	400/415 V
Power	100/110 kVAR
Connection	Three-phase as standard construction
Freq.	50 Hz
Weight	approx. 23 kg
Dimension	670 x 436 - 350 - 396 x 152 mm (H x L1 - L2 - L3 x D)

• Specification:

Losses (discharge resistors included)	< 0.5 Watt/kvar for 380 V rated voltage and above.
Terminals	with threaded rods M6, 8, 10 or 12 according to the power of the capacitor.
Earth	a M8 terminal is included under the cover.
Cable input	47 mm
Color	Beige RAL 7032
Case material	Zinc electroplated mild steel
Fixing	with two slots 26 X 12 mm.
Execution	Indoor (outdoor on request)
Tolerance on capacitance	0 % + 10 %
Protection	IP 42 (IP 54 on request)
Maximum ambient temperature	Class „D“ (+55°C) according to IEC 60831.
Minimum ambient temperature	Indoor type: -25°C. Outdoor type: -40°C.
Minimum distance between units	50 mm.
Minimum distance between units and wall	50 mm.
Voltage test	Between terminals: 2.15 Un for 10 seconds. Between terminals and ground: 3 kVac for 1 minute
Lightning impulse voltage test	15 kV
Altitude	Altitude

• Other models:

CLMD13 440V 10Hz

CLMD13 440V 15Hz

CLMD43 440V 20Hz

CLMD43 440V 25Hz

CLMD53 440V 30Hz

CLMD53 440V 40Hz

CLMD53 440V 50Hz

CLMD63 440V 60Hz

CLMD63 440V 70Hz

CLMD63 440V 75Hz

CLMD63 440V 80Hz

CLMD83 440V 90Hz

CLMD83 440V 100Hz
