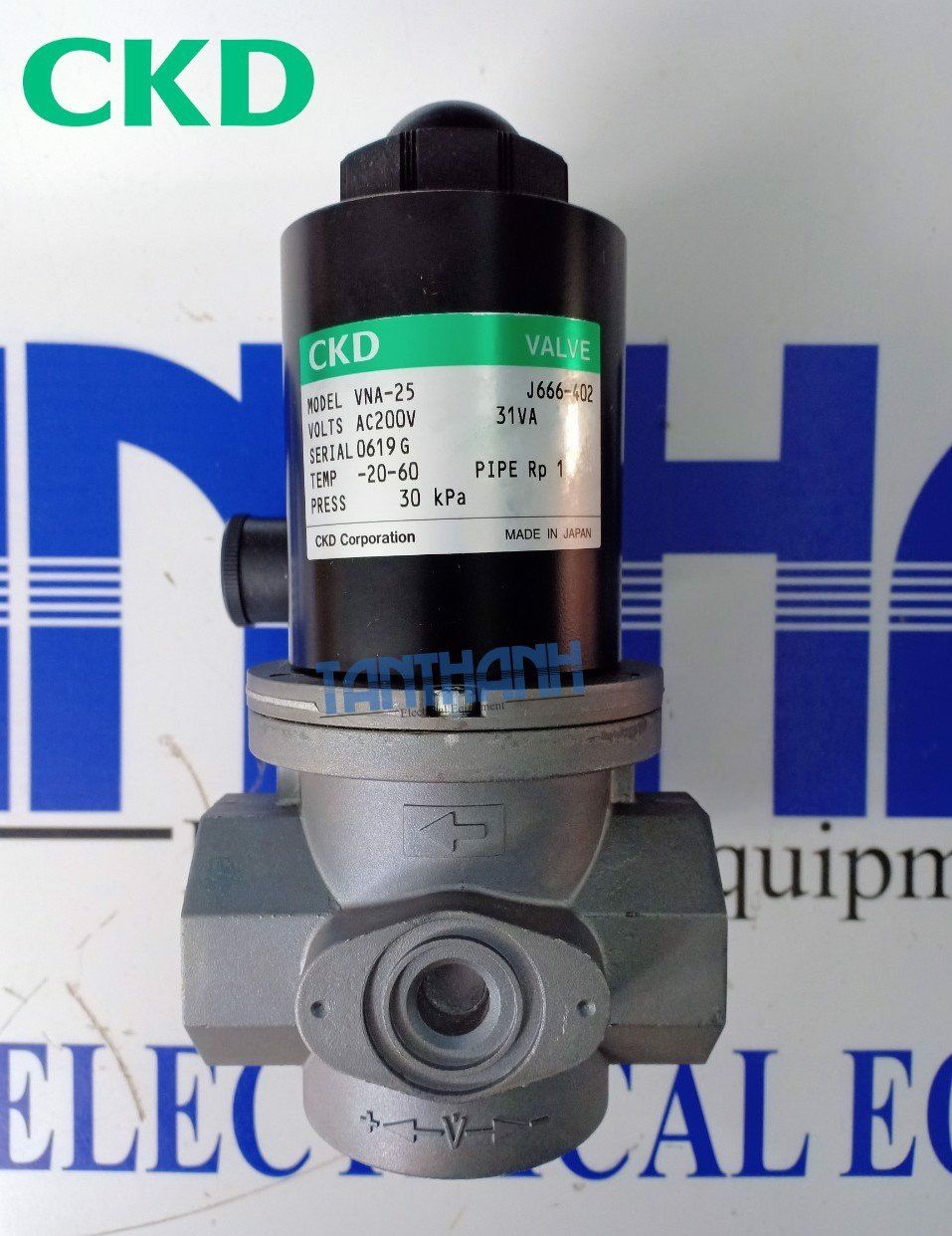

Van VNA-25

0₫

Mô tả

VNA-25

Xuất xứ: Japan

• Specification:

Flow rate (Specific gravity of natural gas 0.65 △P = 0.25 kPa)	18.7 m³/h(ANR
Working fluid	City gas/natural gas/LPG
Cv	12.5
Ambient temperature	-20 (-4°F) to +60 (140°F) (no freezing)
Opening time (s)	0.5 or less
Closing time (s)	1.0 or less
Frequency (cycle/min.)	30 or less
Flow rate adjustment	20 - 100%
Mounting orientation	Vertical direction with the coil on top or horizontal direction with the coil horizontal
Port size	1
Proof pressure (MPa)	0.1 (≈15 psi, 1 bar)
Connection	Screw-in (Rp)
