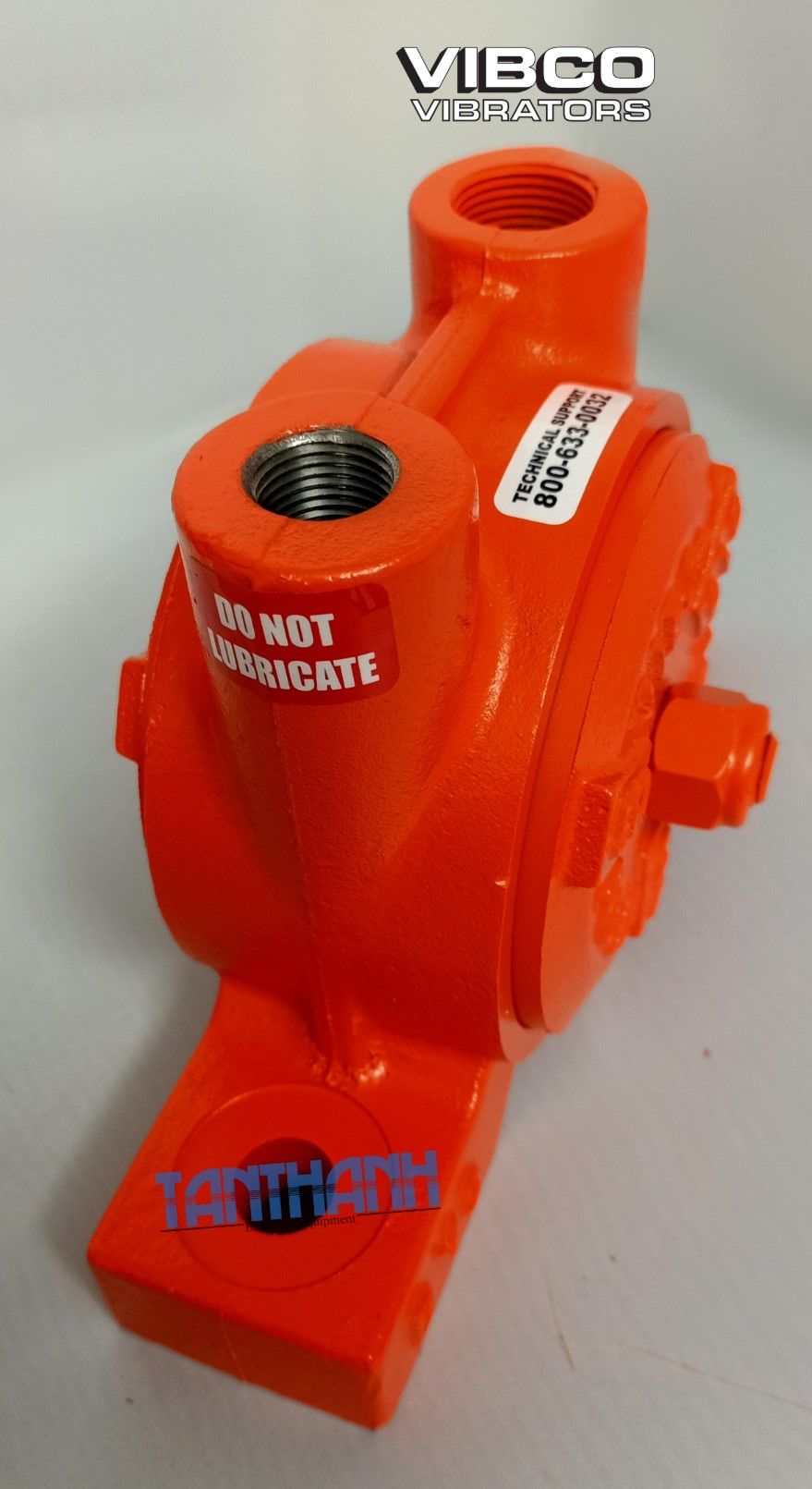

VIBCO Vibrator BVS-510

VIBCO Vibrator BVS-510

0₫

Mô tả

BVS-510

Xuất xứ: USA

Brand	Vibco
Model Numer	BVS-510
Ean	0817457020235
Item	Pneumatic Vibrator
Vibrator Type	Turbine
Bin Weight Capacity	9000 lb.
Max. Temp.	350 Degrees F
Weight	7.3 kg

• Specification:

Speed @ 60 psi	4000 VPM
Speed @ 80 psi	4500 VPM
CFM @ 60 psi	12
CFM @ 80 psi	13
Centrifugal Force @ 60 psi	710
Centrifugal Force @ 80 psi	900
Sound (dB @ 80 psi)	77
Max. Pressure	80 psi
Inlet Port	1/2" NPT
Outlet Port	3/4" NPT
Muffler	6F600
Mounting Plate	Sold Separately
Housing Material	Cast Iron
Bearing Type	Oversized
Overall Length	8-15/16"
Overall Width	4-3/4"
Overall Height	5-3/4"
Application	Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries
Standards	CE Certified, ATEX Certified

• Drawing and dimesion:

A	C	L	W	H	D	E	F	G	I	J
178 mm	16 mm	227 mm	121 mm	146 mm	57 mm	32 mm	65 mm	87 mm	1/2 NPT	3/4 NPT

*NPT Pipe Tap Size

• Other models:

BVS-60

BVS-130

BVS-160

BVS-190

BVS-250

BVS-320

BVS-380

BVS-440

BVS-570
