Card Dispenser IDL-VPD820

Liên hệ để nhận báo giá

Mô tả

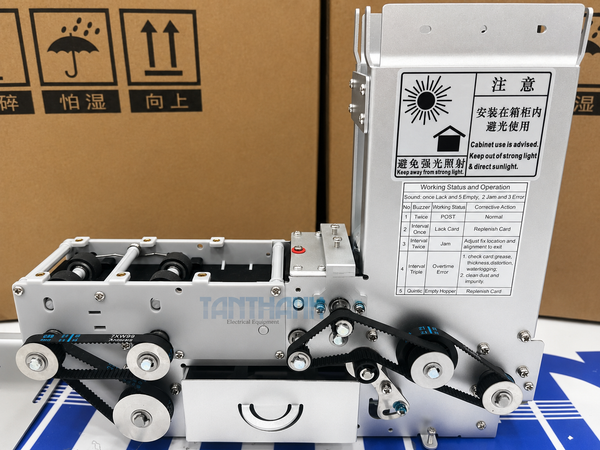

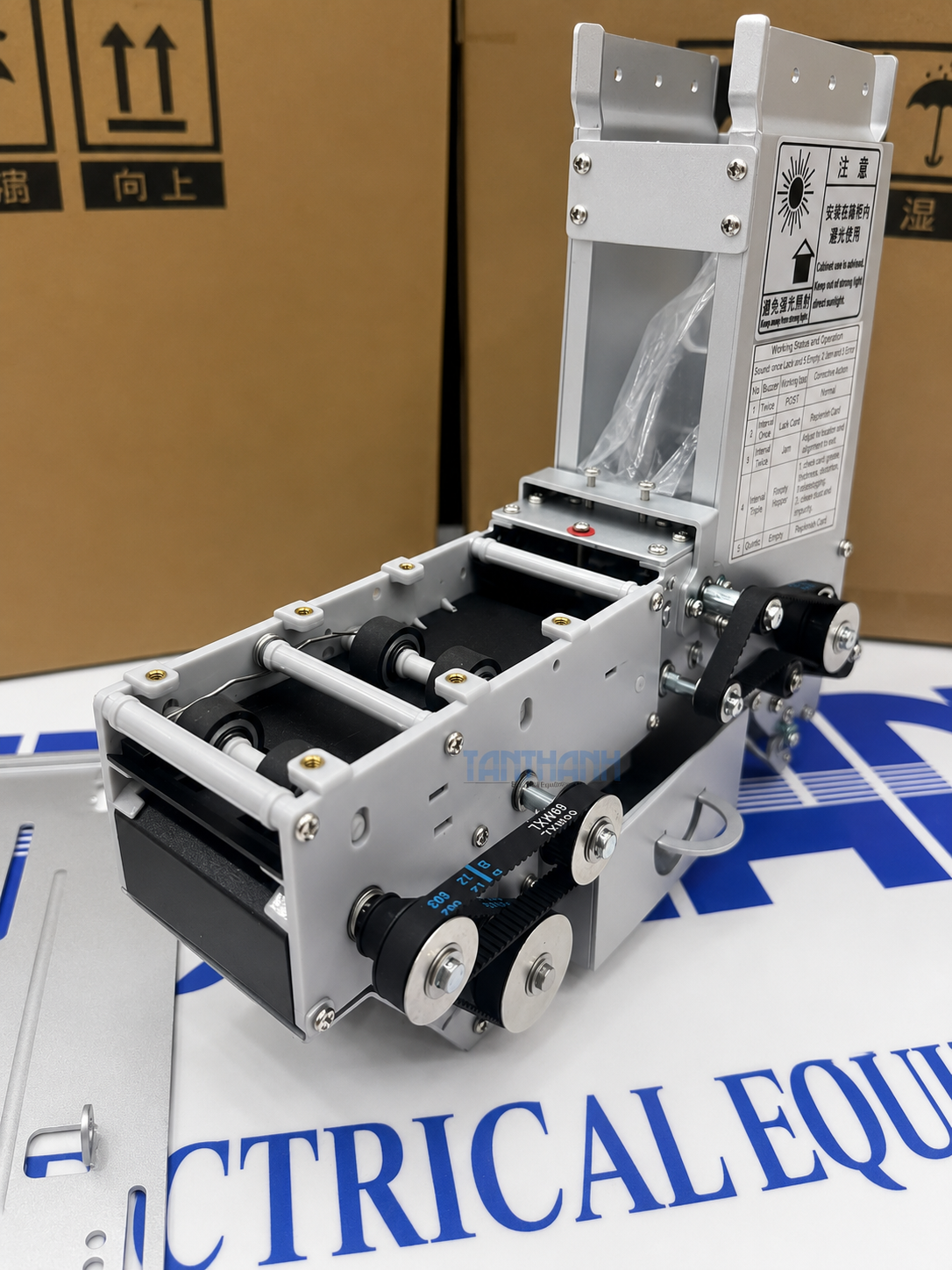

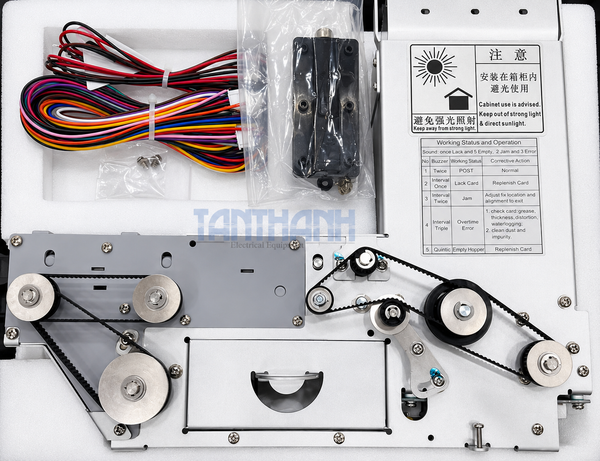

Card Dispenser IDL-VPD820

📐

Technical Specifications

The card dispenser features direct connectivity to the inductor, a 40-piece card recycling capacity, and an automatic buzzer alarm when the card stacker is full.

Technical Parameters

Operating Voltage	24VDC (Max Current 2A, Static Current 0.1A)
Dispensing Speed	Approx. 0.5 seconds
Card Capacity	150 pcs (Based on 0.8mm thickness) *Extendable with a lengthened stacker box
Recycling Capacity	40 pcs
Card Size Dimensions	54 * 78 mm (W * L)
Supported Card Thickness	0.2 mm - 1.5 mm (Adjustable) [Factory Default: 0.8mm]
Card Material	Paper or Polyester cards

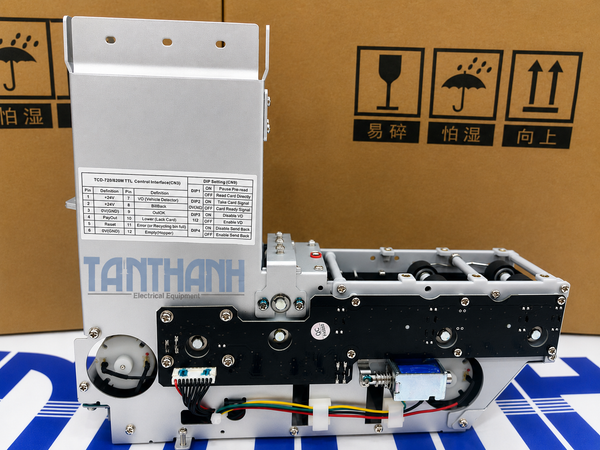

Control Interface	RS232 & I/O Voltage dual interface
Net Weight	2.0 Kg (Including card pressure block)
Environmental Limits	Temperature: -20°C to 80°C \| Humidity: 30% - 90% RH

Key Features

Industrial-Grade Build: Compact structure with a highly robust, reliable, and straightforward control interface.
High Durability: Outstanding resistance to abrasion and corrosion; perfectly optimized for extreme temperature environments.
Smart Card Issuance: Uses simulated manual friction mechanics to ensure seamless adaptability to various warped or deformed cards.
Fail-Safe System: Embedded hardware watchdog combined with a real-time micro-operating system for continuous, reliable downtime-free operation.
Pre-Dispense Mode: Built-in pre-dispensing capability drastically accelerates processing speeds at gates.
Smart Alerts: Automatic buzzer alarm triggers immediately upon low card levels, empty stacker, or hardware failures.
Anti-Loss Recovery: Enhanced security recoveries to safely prevent card loss or misplacement.
Easy Maintenance: Smart motherboard slip design makes installation, removal, and maintenance quick and effortless.
Consistent Quality: Mass die-cast production ensures uniform dimensional precision and long-term manufacturing quality.
