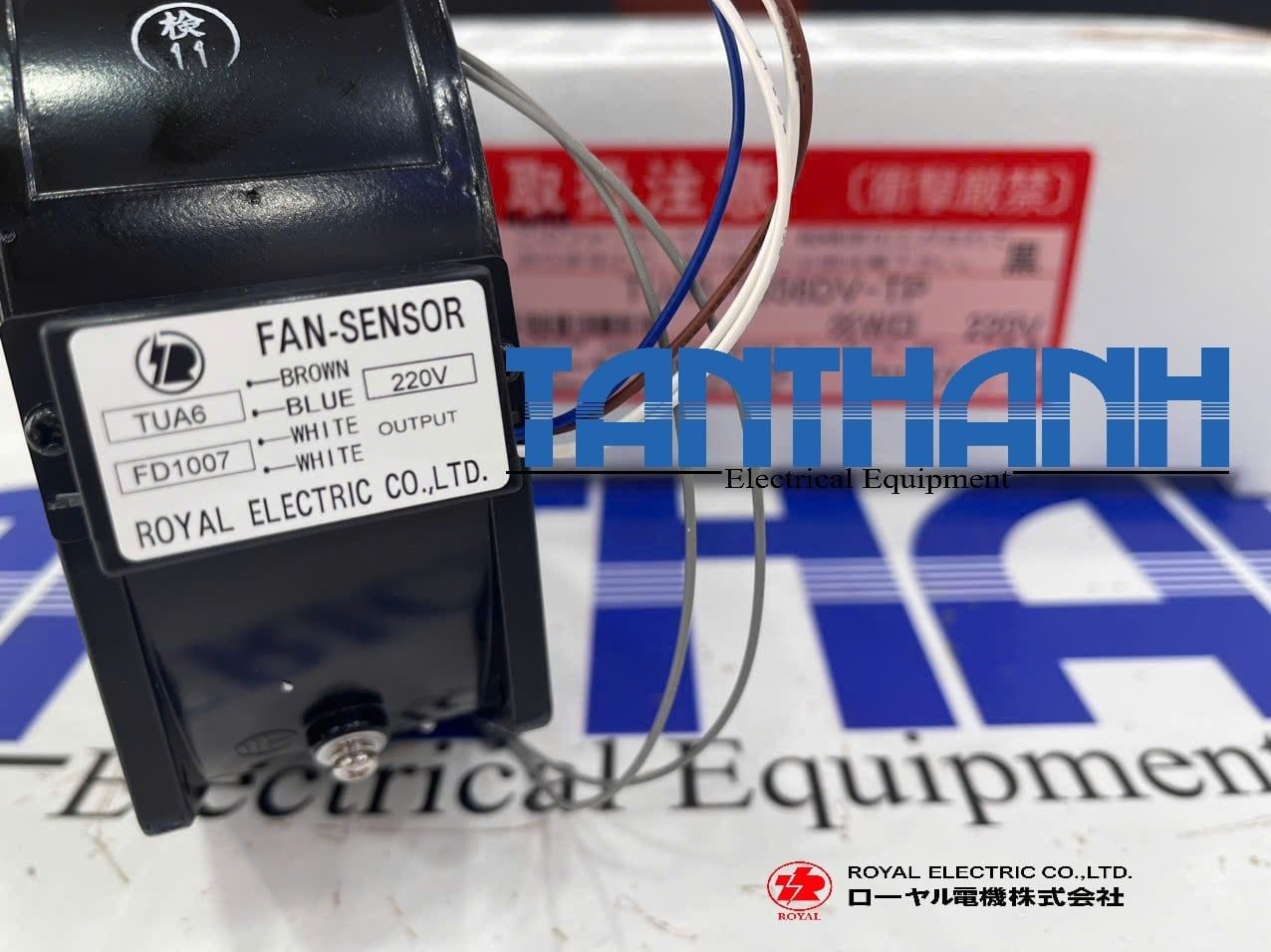

Royal Control Fan T656DV-TP

0₫

Mô tả

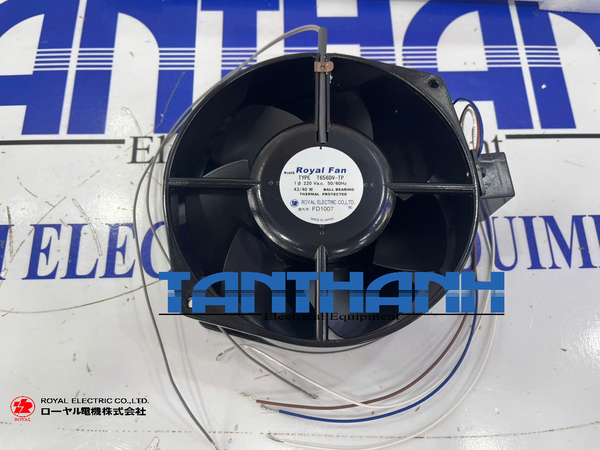

Royal Control Fan T656DV-TP

Origin: Royal Electric Co.,Lt

Royal T656DV-TP 220V 43/40W Cooling Fan without sensor
Manufacturer:	Royal Fan
Part number:	T656DV-TP
other name:	T656DVTP
AC/DC:	AC Fans
Fan Type:	Axial

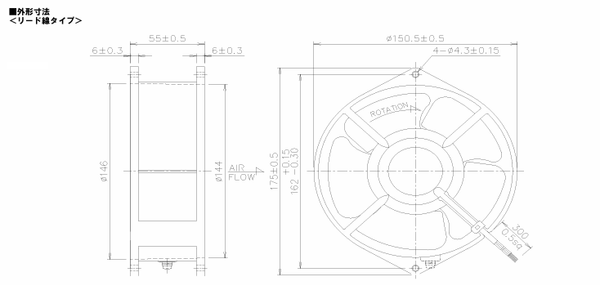

Size:	175 mm x 150mm x 55 mm
Voltage:	220V
PoWer	43/40W

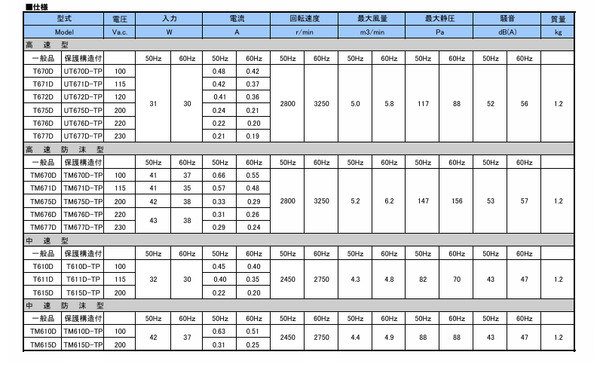

Model	Voltage (Va.c.)	Input (W) 50/60Hz	Current (A) 50/60Hz	Speed (r/min) 50/60Hz	Max Air Volume (m³/min) 50/60Hz	Max Static Pressure (Pa) 50/60Hz	Noise (dB(A)) 50/60Hz	Mass (kg)
High Speed Type
T670D / UT670D-TP	100	31 / 30	0.48 / 0.42	2800 / 3250	5.0 / 5.8	117 / 88	52 / 56	1.2
T671D / UT671D-TP	115	31 / 30	0.42 / 0.37	2800 / 3250	5.0 / 5.8	117 / 88	52 / 56	1.2
T672D / UT672D-TP	120	31 / 30	0.41 / 0.36	2800 / 3250	5.0 / 5.8	117 / 88	52 / 56	1.2
T675D / UT675D-TP	200	31 / 30	0.24 / 0.21	2800 / 3250	5.0 / 5.8	117 / 88	52 / 56	1.2
T676D / UT676D-TP	220	31 / 30	0.22 / 0.20	2800 / 3250	5.0 / 5.8	117 / 88	52 / 56	1.2
T677D / UT677D-TP	230	31 / 30	0.21 / 0.19	2800 / 3250	5.0 / 5.8	117 / 88	52 / 56	1.2
High Speed Splash-proof Type
TM670D-TP	100	41 / 37	0.66 / 0.55	2800 / 3250	5.2 / 6.2	147 / 156	53 / 57	1.2
TM671D-TP	115	41 / 35	0.57 / 0.48	2800 / 3250	5.2 / 6.2	147 / 156	53 / 57	1.2
TM675D-TP	200	42 / 38	0.33 / 0.29	2800 / 3250	5.2 / 6.2	147 / 156	53 / 57	1.2
TM676D-TP	220	43 / 38	0.31 / 0.26	2800 / 3250	5.2 / 6.2	147 / 156	53 / 57	1.2
TM677D-TP	230	43 / 38	0.29 / 0.24	2800 / 3250	5.2 / 6.2	147 / 156	53 / 57	1.2
Medium Speed Type
T610D / T610D-TP	100	32 / 30	0.45 / 0.40	2450 / 2750	4.3 / 4.8	82 / 70	43 / 47	1.2
T611D / T611D-TP	115	32 / 30	0.40 / 0.35	2450 / 2750	4.3 / 4.8	82 / 70	43 / 47	1.2
T615D / T615D-TP	200	32 / 30	0.22 / 0.20	2450 / 2750	4.3 / 4.8	82 / 70	43 / 47	1.2
Medium Speed Splash-proof Type
TM610D-TP	100	42 / 37	0.63 / 0.51	2450 / 2750	4.4 / 4.9	88 / 88	43 / 47	1.2
TM615D-TP	200	42 / 37	0.31 / 0.25	2450 / 2750	4.4 / 4.9	88 / 88	43 / 47	1.2
