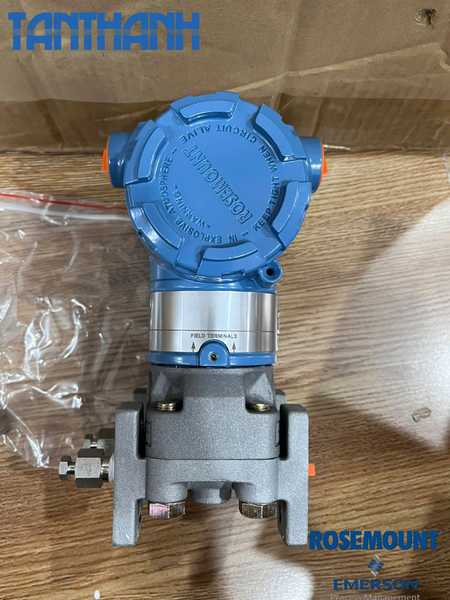

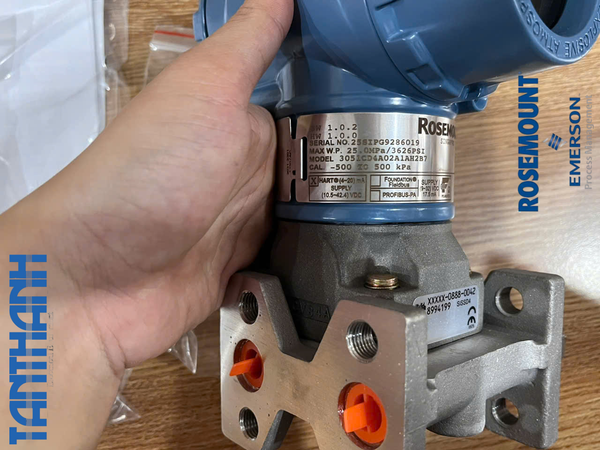

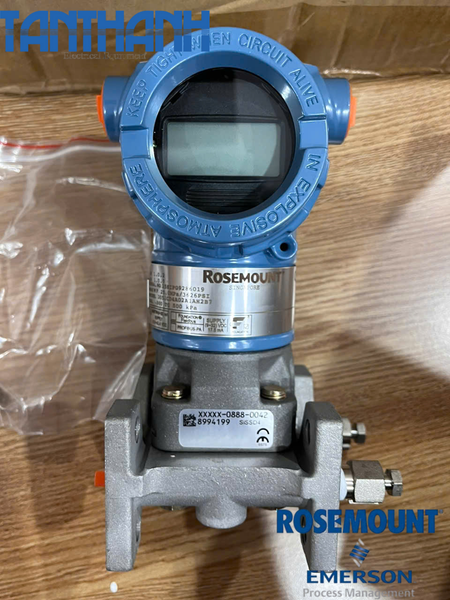

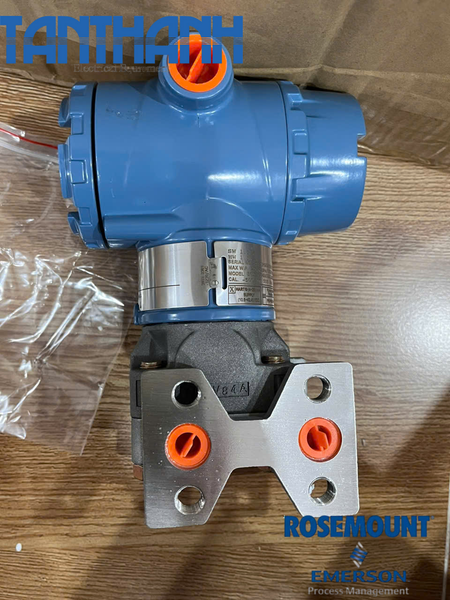

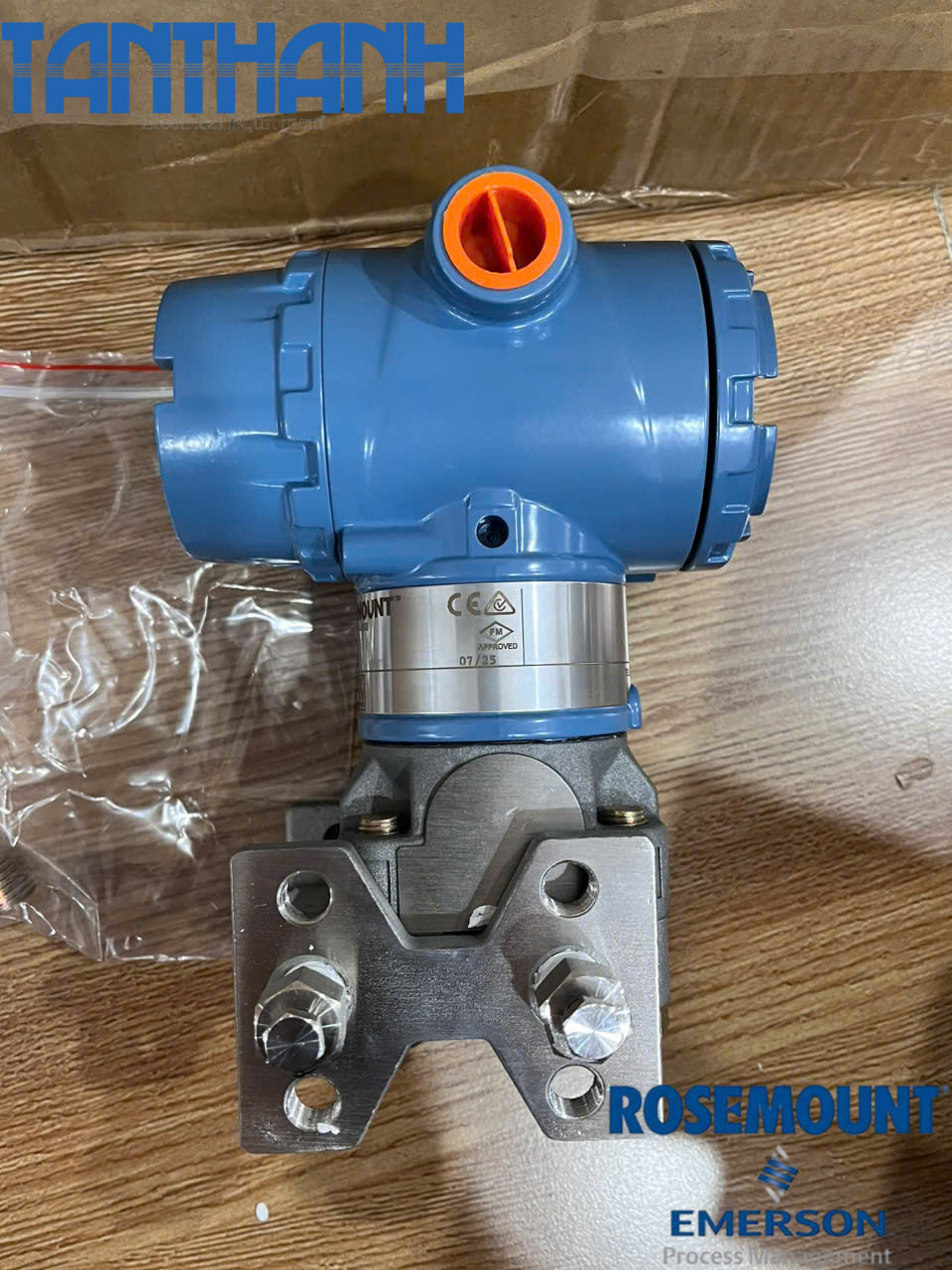

Pressure Rosemount transmitter 3051CD4A02A1AH2B7

0₫

Mô tả

Origin: Rosemount /Singapore

Model String: 3051CD4A02A1AH2B7

Model Name: 3051C

Model Description: Rosemount Coplanar Transmitter

Configuration Details:

Code	Name	Description
D	Measurement Type	Differential
4	Pressure Range	–300 to 300 psi (20.7bar)
A	Transmitter Output	4–20 mA with Digital Signal Based on HART Protocol
0	Process Flange Type , Flange Material , Drain Vent	Alternate Process Connection
2	Isolating Diaphragm	316L SST
A	O-Ring	Glass-filled PTFE
1	Sensor Fill Fluid	Silicone
A	Housing Material , Conduit Entry Size	Aluminum , 1/2-14 NPT
H2	Alternate Flange	Traditional Flange, 316 SST, SST Drain/Vent

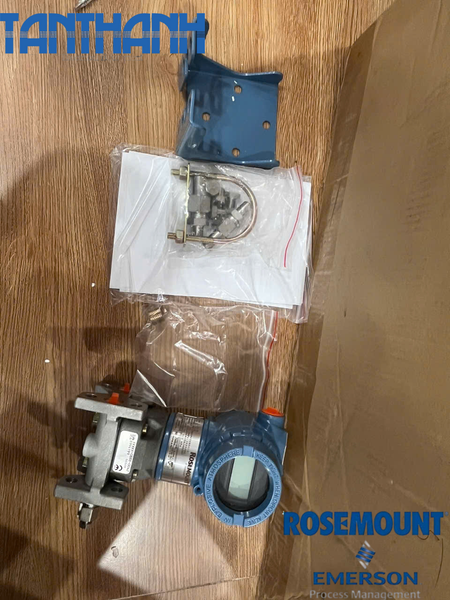

B7	Mounting Bracket	B1 Bracket with Series 300 SST Bolts

• Drawing and dimesion:
