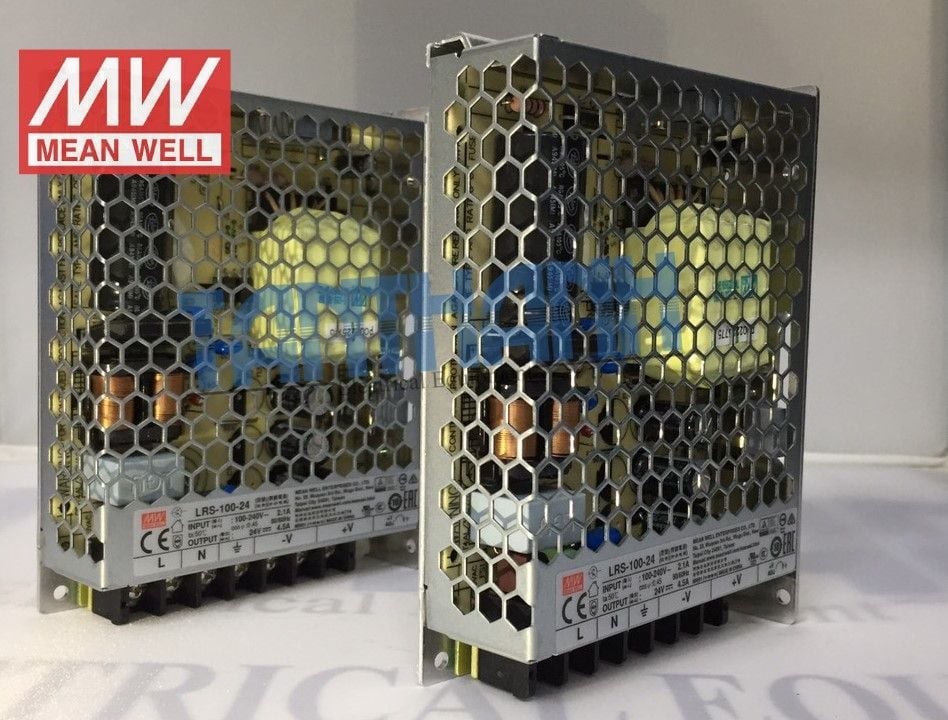

LRS-100-24

LRS-100-24

0₫

Mô tả

LRS-100-24

Xuất xứ: Trung Quốc

Brand	Meanwell
Item number	LRS-100-24
Type of power supply	switched-mode
Output Voltage	24 V
Output rated current	4.5 A
Output current range	0 ~ 4.5 A
Rated power	108 W
Input Voltage	100-240 V~
Input current	2.1 A
Operating temperature	-30...70°C
Freq.	50-60 Hz
Body dimensions	129 x 97 x 30 mm (L x W x H)
Weight	0.34 kg

• Specification:

Ripple & noise (max.)	150mVp-p
Voltage adj. range	21.6 ~ 28.8V
Voltage tolerance	±1.0%
Line regulation	±0.5%
Load regulation	±0.5%
Setup, rise time	500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
Hold up time (typ.)	55ms/230VAC 10ms/115VAC at full load
Efficiency	90%
AC current (typ.)	1.9A/115VAC 1.2A/230VAC
Inrush current (typ.)	COLD START 50A/230VAC
Leakage current	<0.75mA / 240VAC
Overload protection	110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over voltage protection	28.8 ~ 33.6V Protection type : Shut down o/p voltage, re-power on to recover
Working temp.	-30 ~ +70℃ (Refer to "Derating Curve")
Working humidity	20 ~ 90% RH non-condensing
Storage temp., humidity	-40 ~ +85 , 10 ~ 95% RH non-condensing
Temp. coefficient	±0.03%/℃ (0 ~ 50℃)
Vibration	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL 62368-1, TUV EN62368-1, EN60335-1, EN61558-1 2 16 .1, BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1(by CB) approved
Withstand voltage	I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC emission	Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020
EMC immunity	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020
MTBF	720.6K hrs min. MIL-HDBK-217F (25℃)
Electrical connection	terminal block
Protection	overload, short-circuit, voltage growth
Mounting	for building in
Mounting Type	Chassis Mount
Features	Adjustable Output, Universal Input
Approval Agency	CB, CCC, CE, cURus, TUV
Applications	Household Appliances, ITE (Commercial)

• Drawing and dimesion:

• Other models:

LRS-100-3.3

LRS-100-5

LRS-100-12

LRS-100-15

LRS-100-36

LRS-100-48
