HONEYWELL DC1040 CR-702100-E

HONEYWELL DC1040 CR-702100-E

0₫

Mã hàng :

Mô tả

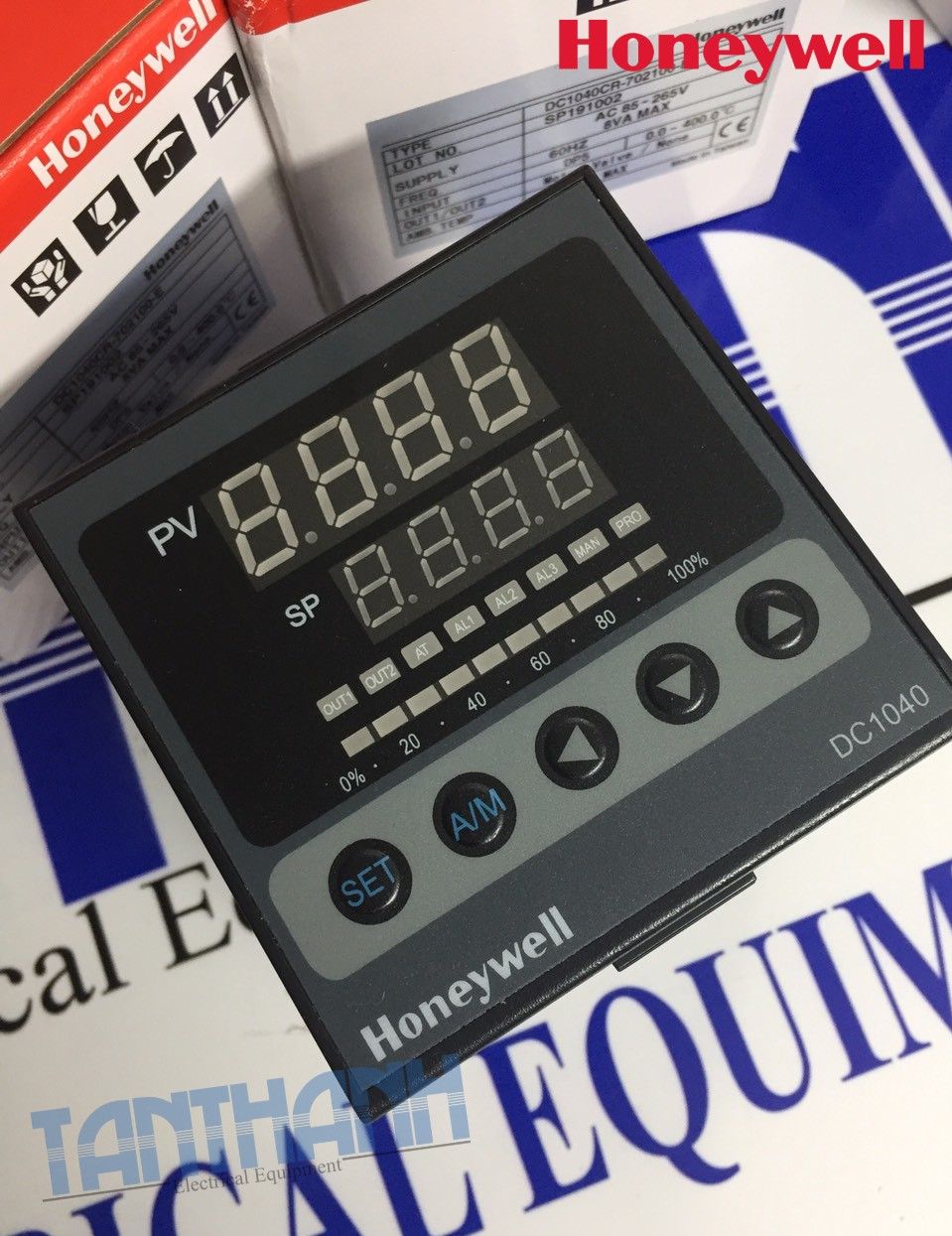

Bộ điều khiển nhiệt độ HONEYWELL DC1040CR-702100-E Xuất xứ: Taiwan

										Manufacturer	Honeywell/ Taiwan
										Model	DC1040 CR-702100-E
										Lot No.	SP191002
										Supply Voltage	85~265VAC
										Power Consumption	8VA Max.
										Input	DP5 0.0~400.0 °C
										Output	Motor Valve
										Ambient Temp.	50°C Max.
										Freq.	50/60 Hz

• Specification:

Type of Input	RTD (Pt100Ω, JPt100Ω, JPt50Ω)
Input Sampling Time	500 ms
Input Resolution	14 bit (each)
PV/SP Indication	4-digit, 7 segment display
Constant Value Storage System	Non-volatile memory (EEPROM)
Indication Accuracy	± 0.5%FS
Relay Output	Contact, SPDT, 3A/240VAC
Aux. Output	4~20mA
Alarm	2 alarms
Type of Communication	RS-232, RS-485
Exterior Size	96x96x97 mm
Control Mode	ON-OFF, PID - Proportional Band (P): 0~200% (On/Off action at P=0) - Integral Time (I): 0~3600 sec (PD action at I=0) - Derivative Time (D): 0~900 sec (PI action at D=0)
Panel Cutout	90.5 X 90.5 mm
Storage Temperature	-25°C~65°C
Ambient Humidity	50~85% RH (no condensation)
Exterior	Case and front panel : plastic
Mounting	Panel-mount

• Dimension & Drawing:

Other forms:

HONEYWELL DC1010
HONEYWELL DC1020
HONEYWELL DC1030
