INTERRUPT RATING: 50 kAIC at 300 Vdc and 200 kAIC at 300 Vdc
AMPERAGE RATING: 100 A
FREQUENCY RATING - MAX: 62 Hz
MINIMUM MELTING: 110 I2t (A2 sec)
FUSE SIZE: 22 x 58 mm
VOLTAGE RATING: 700 V
FUSE INDICATOR: Non Indicating
CONSTRUCTION SIZE: 22 mm x 58 mm
CLEARING (I2T): 15600
COLOR: White
CONNECTION: Ferrule end x ferrule end
MATERIAL: Ceramic
UTILIZATION CATEGORY: aR (accompanied semiconductor protection)
WATT LOSSES: 16.5 W

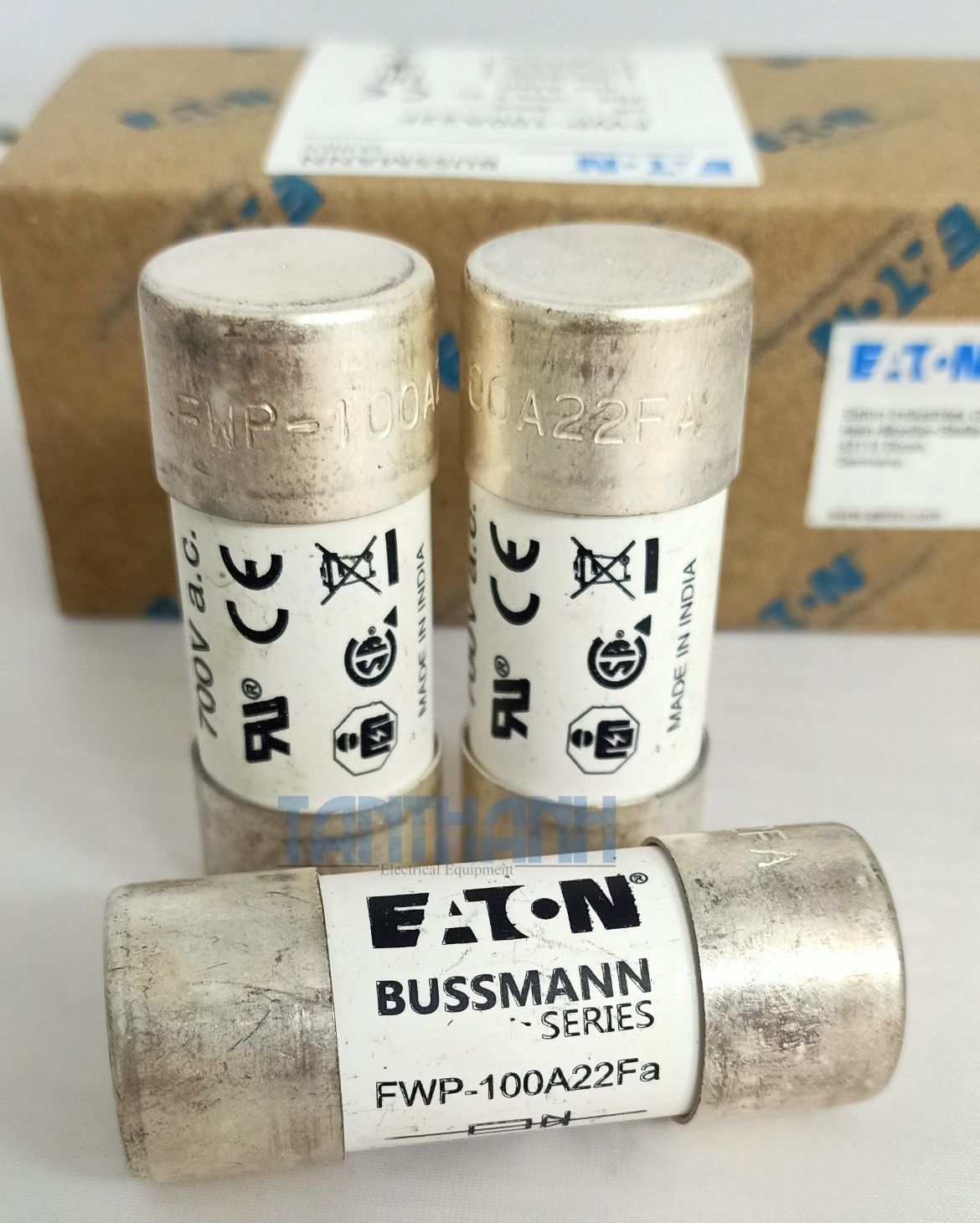

TYPE: High speed fuse
FUSE SHAPE: Cylindrical
USED WITH: Finger safe holders/blocks and striker
BREAKING CAPACITY: 200 A
FREQUENCY RATING - MIN: 45 Hz
CLASS: Class aR
PRE ARC (I2T): 1100
APPLICATION: protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
VOLTAGE TYPE: AC/DC
PACKAGING TYPE: Standard
