Cầu Chì Bussmann 170M2621

Cầu Chì Bussmann 170M2621

0₫

Mô tả

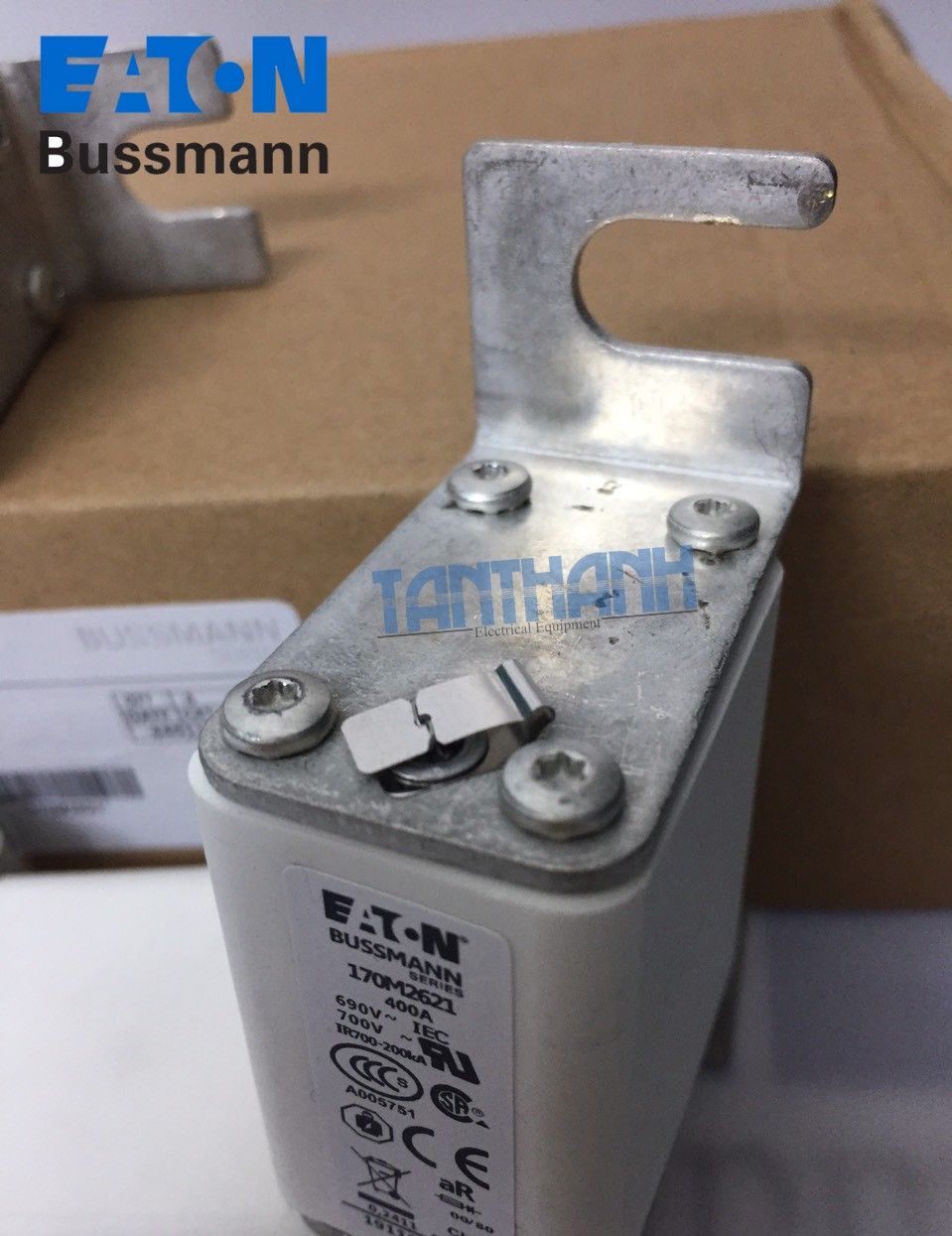

Bussmann 170M2621

Xuất xứ: Trung Quốc

Manufacturer	Eaton
Product Range	Fuse
Part Number	ESD_427224
Construction size	DIN 00
Voltage Rating AC	690 VAC
Current Rating	400 A
Rated switching capacity	200 kA
Watts Loss	70
Utilization category	aR (accompanied semiconductor protection)
Dimensions	100 x 30 x 51 mm L x W x H
Weight	226.99999 g

• Specification:

Body Style	Square Body with offset bolted tags (slotted)
Mounting Style	Stud
Termination Style	Bolt Down
Packaging	Bulk
Factory Pack Quantity	6
Type	80
Category	High Speed Fuse
Status indicator	single (top) indicator system
Usable for size/applications	Semiconductor protection
Standard/Approval	DIN IEC
Standards/Regulations	DIN 43653 IEC 60269-4
Approval Agency	CE, CSA, UR
UNSPSC	39121625
Melting I²t	18000

• Drawing and dimesion:

• Other models:

170M1308

170M1309

170M1310

170M1311

170M1312

170M1313

170M1314

170M1315

170M1316

170M1317

170M1318

170M1319

170M1320

170M1321

170M1322

170M1358

170M1359

170M1360

170M1361

170M1362

170M1363

170M1364

170M1365

170M1367

170M1369

170M1370

170M1371

170M1372

170M1408

170M1409

170M1410

170M1411

170M1412

170M1413

170M1414

170M1415

170M1416

170M1418

170M1420

170M1421

170M1422

170M2608

170M2609

170M2610

170M2611

170M2612

170M2613

170M2614

170M2615

170M2616

170M2617

170M2618

170M2619

170M2620

170M2621

170M2658

170M2659

170M2660

170M2661

170M2662

170M2663

170M2664

170M2665

170M2667

170M2668

170M2669

170M2670

170M2671
