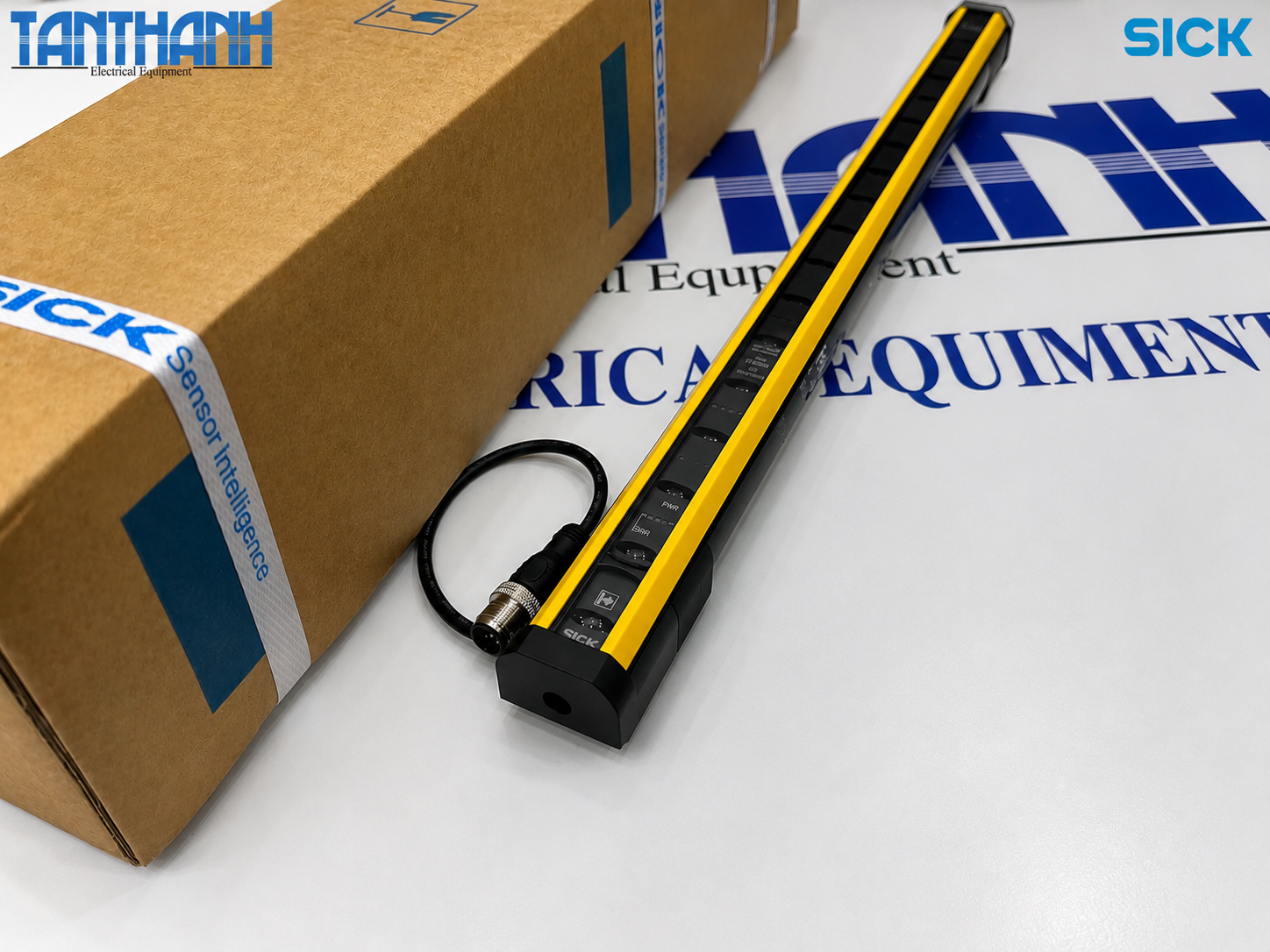

C2C-SA04530A1000 Safety light curtains

Liên hệ để nhận báo giá

Mô tả

🌐 Origin: SICK

📐

Features
Product version	deTec2 Core
Application	Normal industrial environment
System part	Sender
Compatible receiver	1213203
Resolution	30 mm
Scanning range	15 m
Protective field height	450 mm
No blind zones	Yes
Synchronization	Optical synchronization
Items supplied	Sender
Safety-related parameters
Type	Type 2 (IEC 61496-1)
Safety integrity level	SIL 1 (IEC 61508)
Category	Category 2 (ISO 13849-1)
Performance level	PL c (ISO 13849-1)
PFH_D (mean probability of a dangerous failure per hour)	31 x 10^-9
T_M (mission time)	20 years (ISO 13849-1)
Safe state in the event of a fault	At least one OSSD is in the OFF state.
Interfaces
System connection	Plug, M12, 5-pin
Length of cable	150 mm
Cable diameter	4.3 mm
Cable bend radius	Stationary position: > 12 x cable diameter Flexible use: > 15 x cable diameter
Display elements	LEDs
Electrical data
Protection class	III (IEC 61140)
Supply voltage V_S	24 V DC (19.2 V ... 28.8 V)
Ripple	≤ 10%
Power consumption typical	0.86 W (DC)
Mechanical data

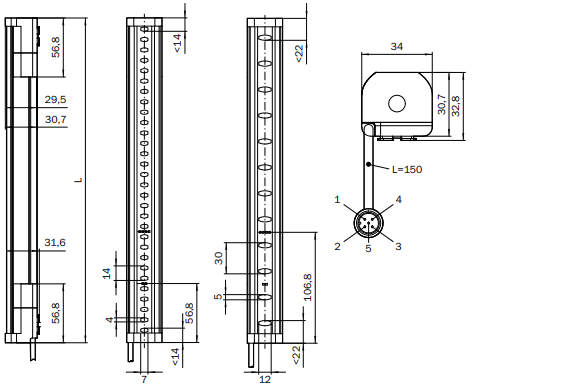

Dimensions	See dimensional drawing
Housing material	Aluminum extruded profile
Ambient data
Enclosure rating	IP65 (IEC 60529), IP67 (IEC 60529)
Ambient operating temperature	-30 °C ... +55 °C
Storage temperature	-30 °C ... +70 °C
Air humidity	15% ... 95%, Non-condensing
Vibration resistance	5 Hz ... 150 Hz, 3.5 mm / 1g (EN 60068-2-6)
Shock resistance	15 g / 6 ms (EN 60068-2-27)
Class	3M4 (IEC TR 60721-4-3)
