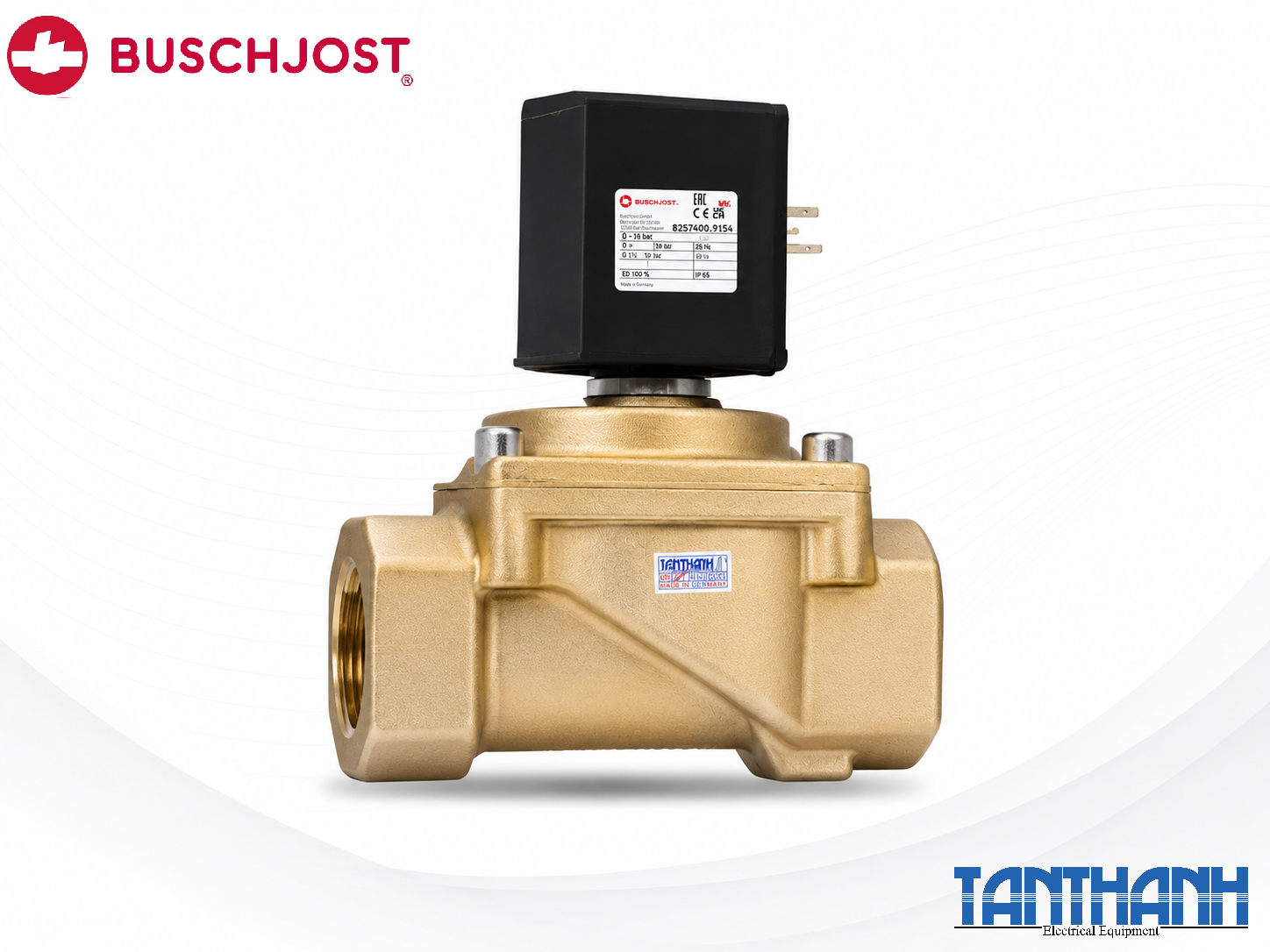

Buschjost Solenoid Valve G2 8254700

Buschjost Solenoid Valve G2 8254700

Liên hệ để nhận báo giá

Mô tả

Buschjost Solenoid Valve G2

8254700.9401

🌐 Origin: Buschjost / Germany

📐

Technical Specifications

Valve Parameters
Brand	IMI BUSCHJOST (Part of IMI Precision Engineering)
Model / Product Code	8254700.9401.xxxxx (xxxxx: Voltage & frequency codes required)
Valve Type	2/2-way Normally Closed (NC) Indirect solenoid actuated diaphragm valve
Port Size (R)	G2 (Thread form: ISO G 2")
Orifice	50 mm (Nominal diameter DN 50)
Flow Rate	Kv value: 41 m³/h Cv value (US) ≈ 49.2 (Kv x 1.2)
Operating Pressure	0 ... 16 bar
Pressure Notes	For liquid mediums > 10 bar, max differential pressure is limited to 2 bar.
Operation Type	With forced lifting Damped operation, operates without differential pressure
Solenoid Type	Solenoid in V d.c. (Click-on design, 100% ED duty cycle, IP65 protection class)
Medium	Neutral gases and liquids (e.g., air, water, oil)
Fluid Temperature	-10°C ... +90°C (+14°F ... +194°F)
Ambient Temperature	-10°C ... +50°C (+14°F ... +122°F) (Air supply must be dry below +2°C to avoid ice)
Materials	Body: Brass (CW617N) Seat seal: NBR-K Internal parts: Stainless steel, PVDF, Brass
Mounting Position	Optional (Preferably solenoid vertical on top)
Weight	5.4 kg (Net weight of the valve body and standard coil)

📷

Product Images & Technical Drawing

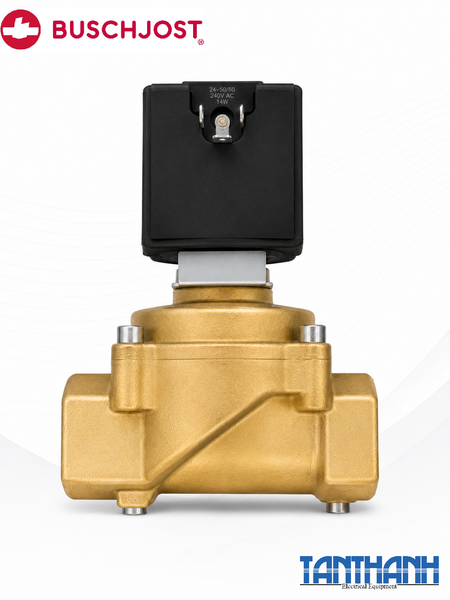

Buschjost Product 1

Buschjost Product 2

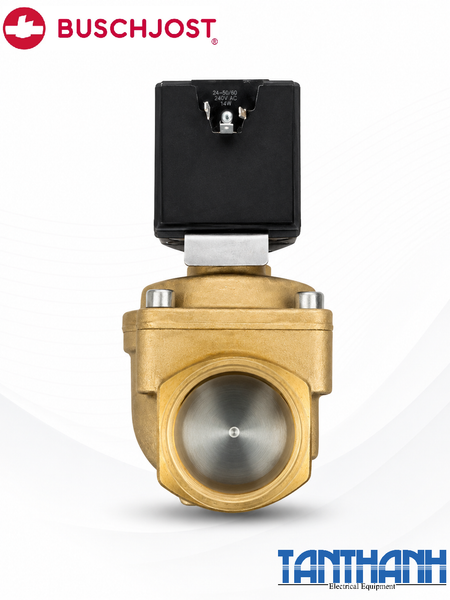

Buschjost Product 3

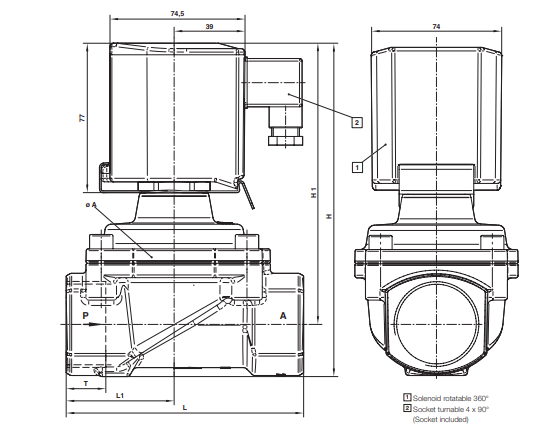

Technical Dimension Drawing

Dimensional Data (Drawing Values)
L - Total Valve Length	160 mm
H - Total Height	201.5 mm
H1 - Height (Center to Top)	167 mm
A - Maximum Depth	109 mm
L1 - Length (Inlet to Center)	74 mm
T - Thread Depth	24 mm
