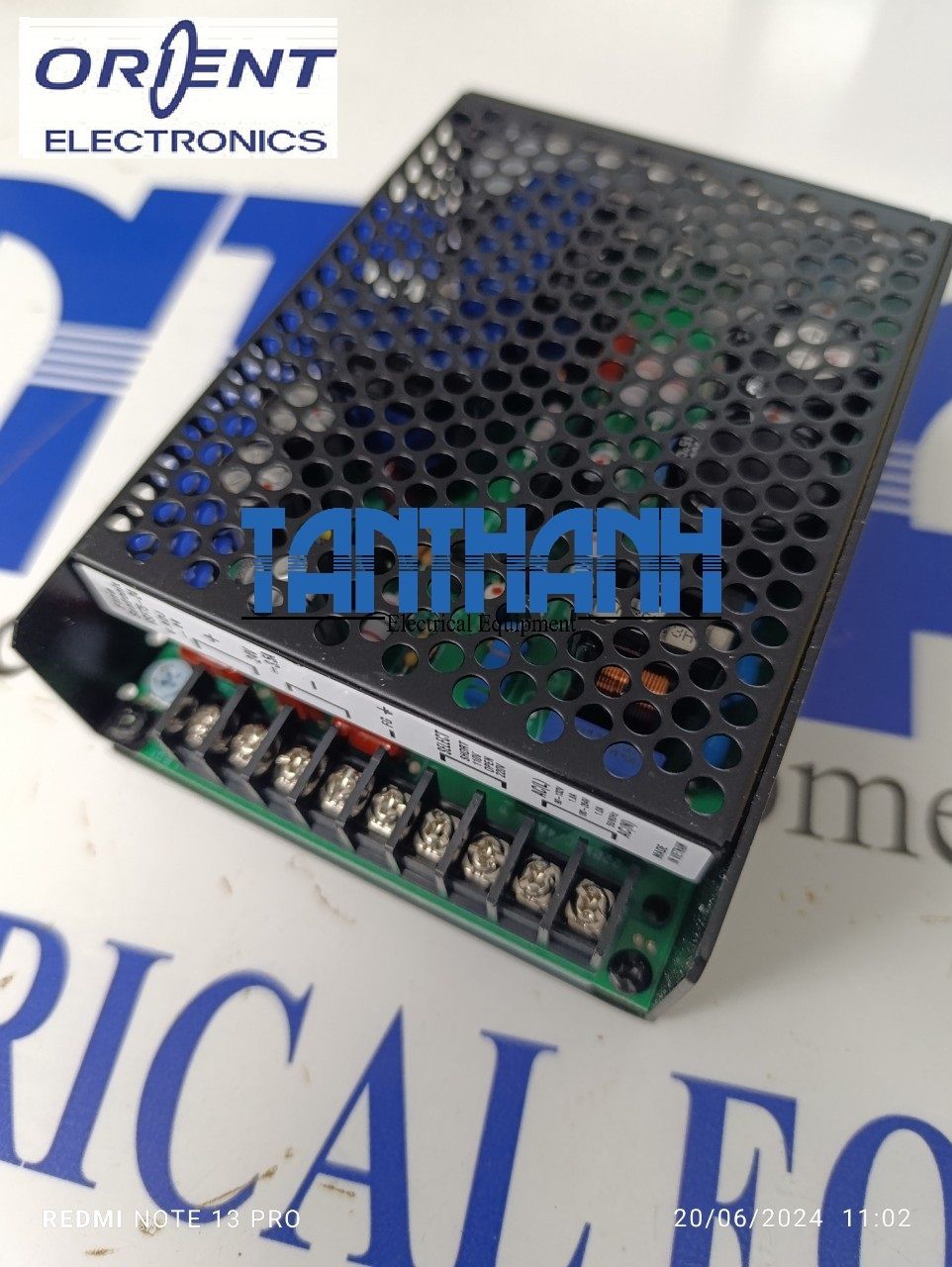

Bộ nguồn VSF75-24

0₫

Mô tả

Bộ nguồn VSF75-24

Xuất xứ: Korea

• Specification:

* INPUT	Current (110V)	1.2 (I₀=100%)
	(220V)	0.6 (I₀=100%)
	Efficiency (110V)	75 typ
	(220V)	78 typ
	Inrush Current	20A typ(AC IN 110V, I₀=100%), 40A typ(AC IN 220V, I₀=100%) at cold start
	Leakage Current	3.5
* OUTPUT	Voltage	24V
	Current	2.1
	Regulation, Line	120mV Max.
	Regulation, Load	240mV Max.
	Ripple	240 mVp-p Max.
	Ripple, Noise	290 mVp-p Max.
	Temperature Drift 0...50℃	360 mV Max.
	Rise time	100ms Max. (AC IN 85V I₀=100%)
	Holding time	10ms typ (AC IN 85V I₀=100%)
* Protection Circiut	Over Current Protection	Works at over 110% of rating and recovers automatically
	Over Voltage Protection	Works at 115 ~ 140% of rating
* Electrically Isolated	Input-Output	AC 1,500V 1 minute current 10mA, DC 500V 100MΩ (At room temperature & Humidity)
	Input-Case, FG	AC 1,500V 1 minute current 10mA, DC 500V 100MΩ (At room temperature & Humidity)
	Output-Case, FG	AC 500V 1 minute current 100mA, DC 500V 100MΩ (At room temperature & Humidity)
* Invironment	Operating Temp and Humid	10 ~ +50℃, 30 ~ 90% RH(Non condensing)
	Storage Temp and Humid	-20 ~ +75℃, 20 ~ 90% RH(Non condensing)
	Vibration	10 ~ 55Hz at 2G, 3 minutes period, 30 minutes along X, Y and Z axis
	Impact	10G for 20ms once on each X, Y and Z axis
* Safety	Safety Regulation	-
	Line Conducted RF Voltage	Built to meet EN 55022-A
